Zhengchang Ring die

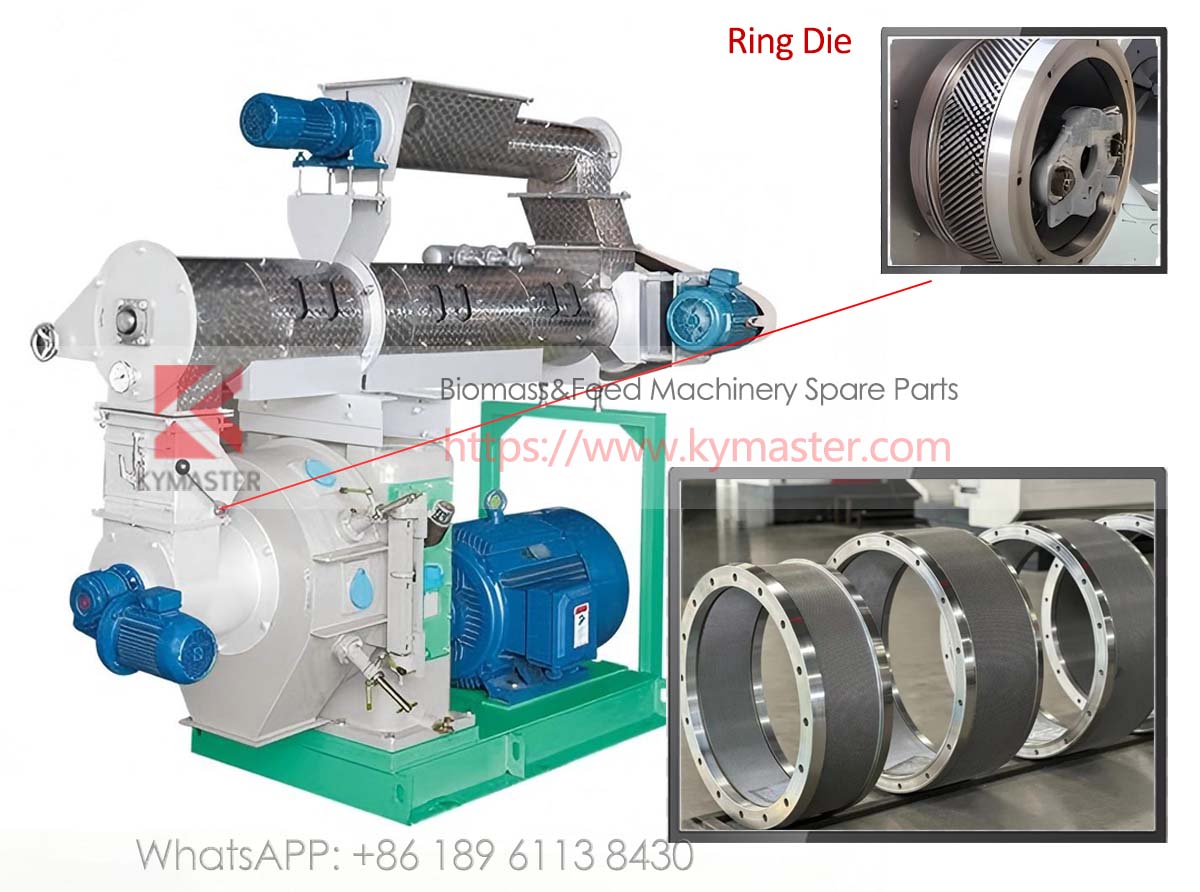

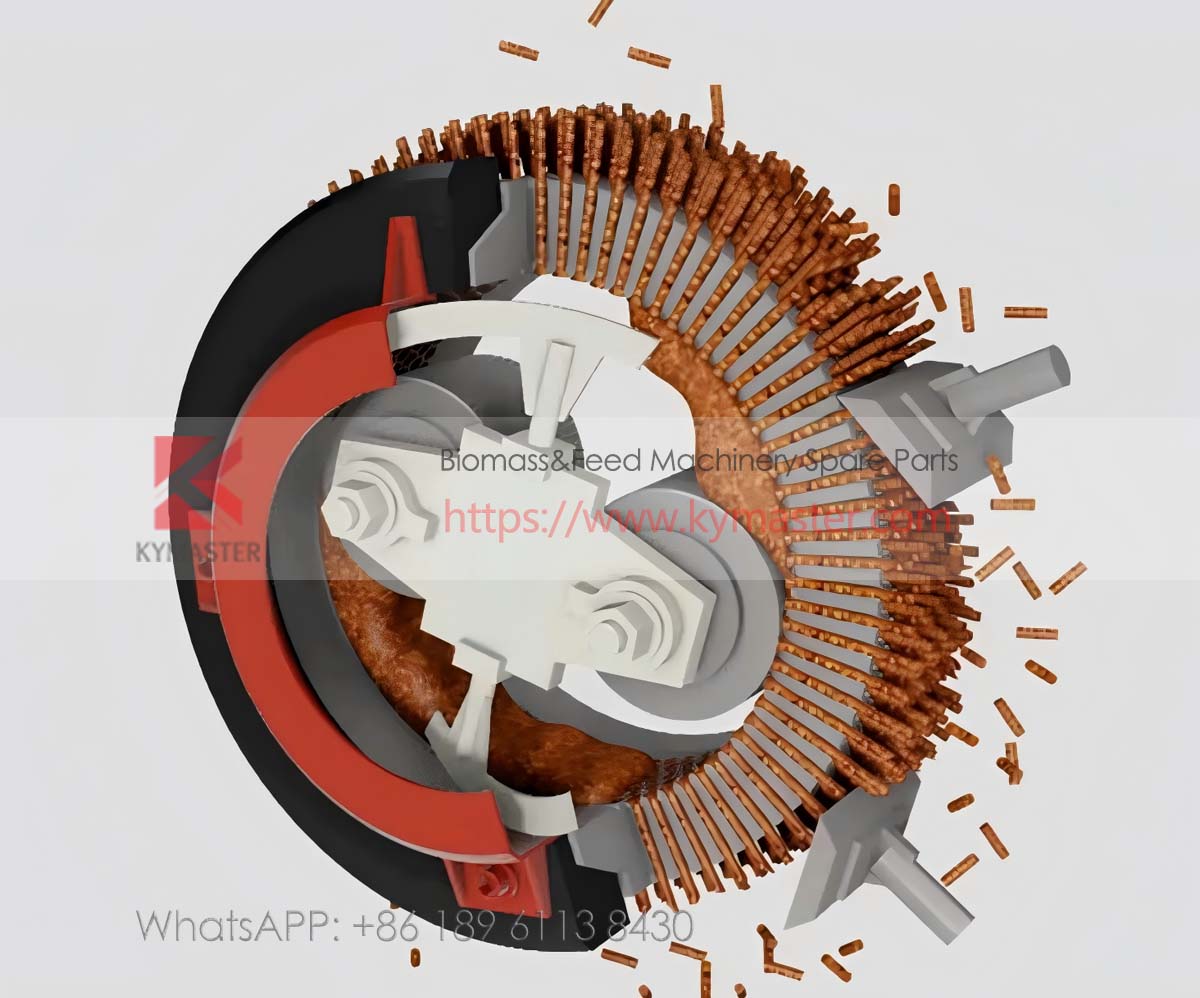

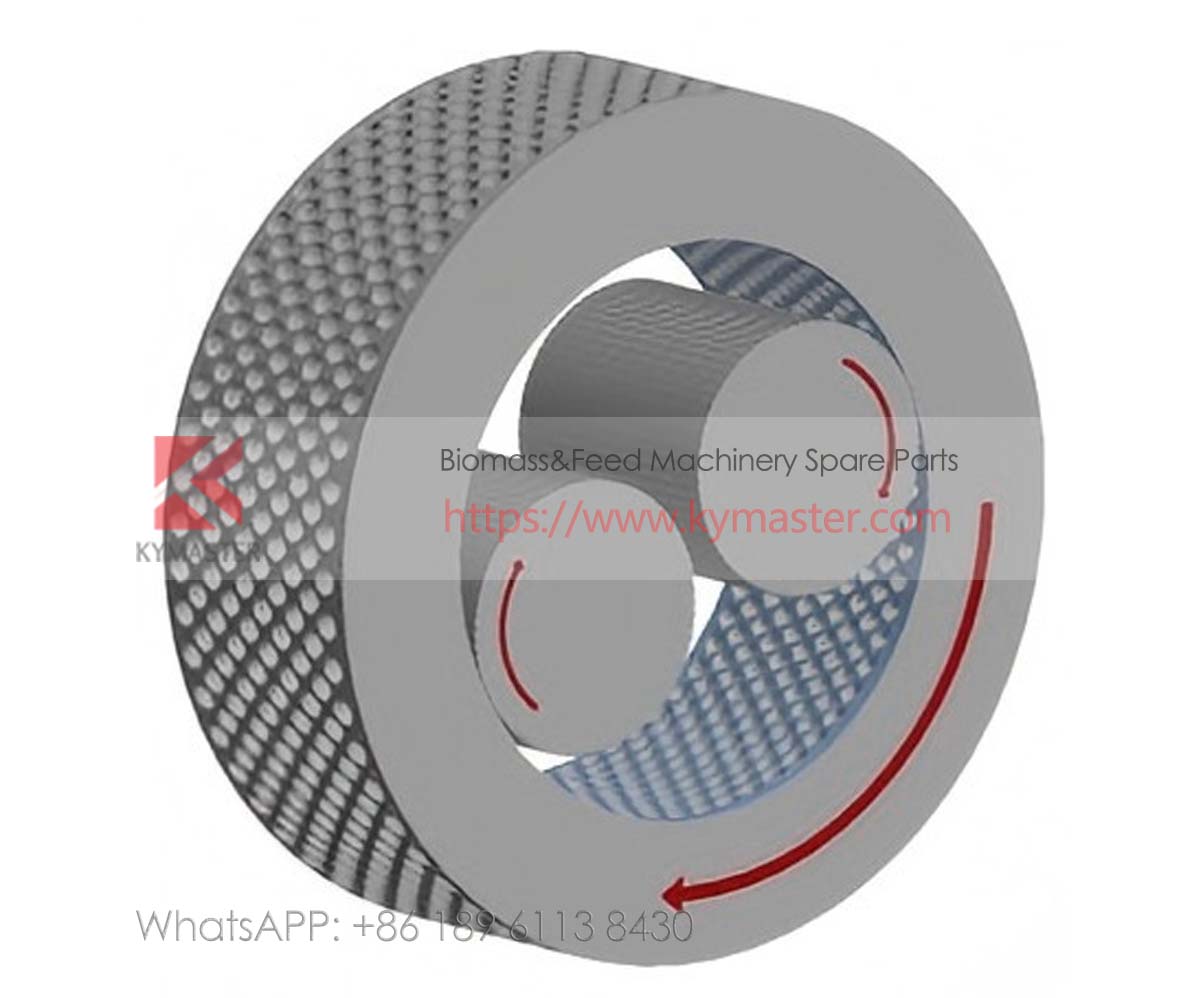

Ring die is one of the key parts of a pellet mill, which is wearing part and expensive. Its quality and durability determine the service life, production capacity and pellet quality, furthermore, directly affecting production costs.

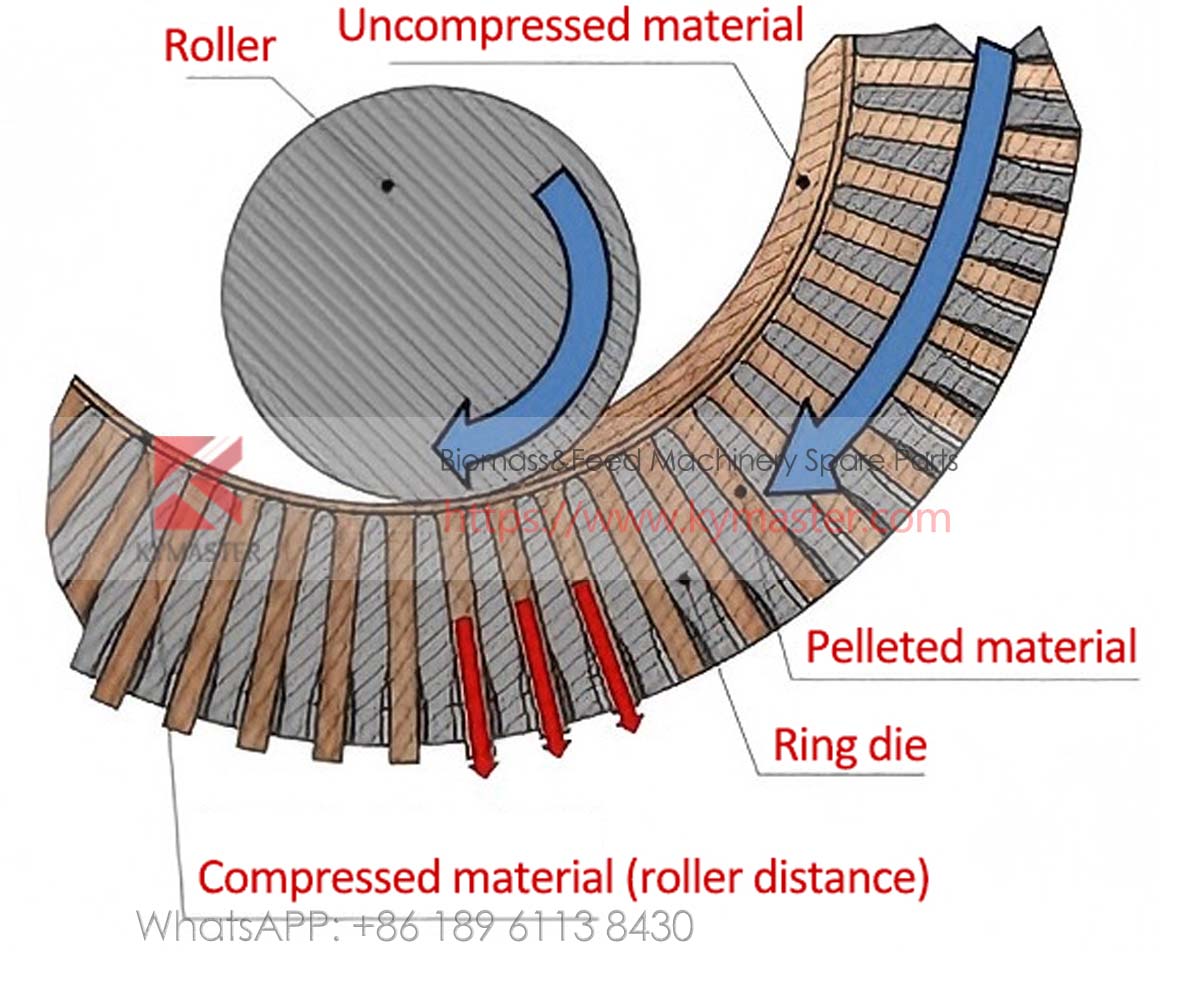

The main failure of the ring die is due to worn-out die holes and inner surfaces (rendering it unusable), though cracking and clogging (preventing pellet extrusion) also occur in some cases.While the die's lifespan is largely determined by its material and manufacturing process. Additionally, for the same material and processing method, its life time is also influenced by factors such as raw material properties, processing parameters, and operational techniques.

Moreover, the smoothness of the die hole surface directly affects whether the ring die can discharge material properly during the initial trial pressing.

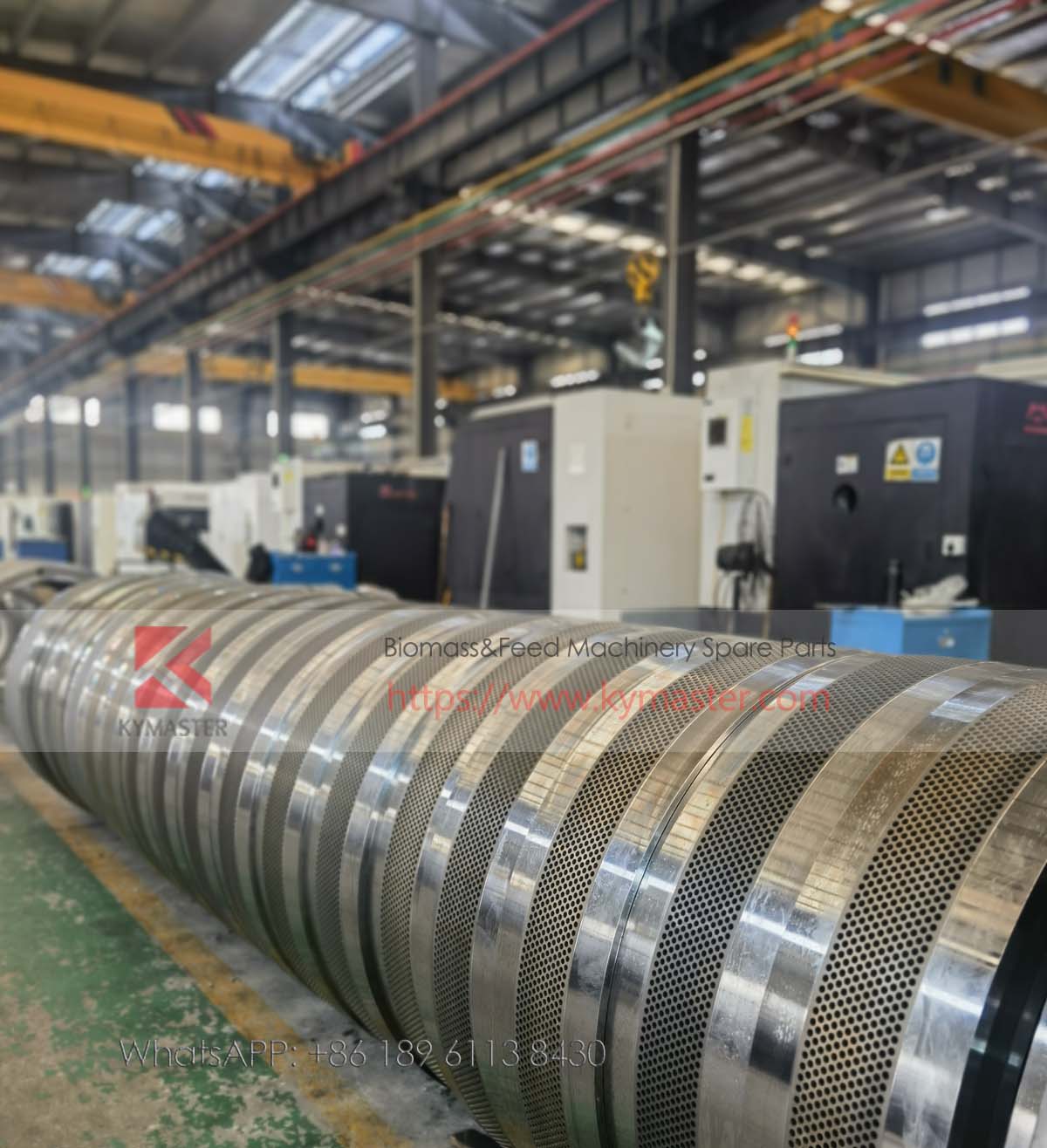

Our company supply dies with a ID up to 900mm, OD up to 1,440mm,hole diameters from 1.0mm to 30mm, compression rate is up to 25. We manufacture about 5000pcs dies every year and customized pellet ring dies for different brands of pellet mill, learn more about our ring dies processing

1. Description of Zhengchang Ring Die

Smooth die hole, nice appearance, large capacity, high quality, long life

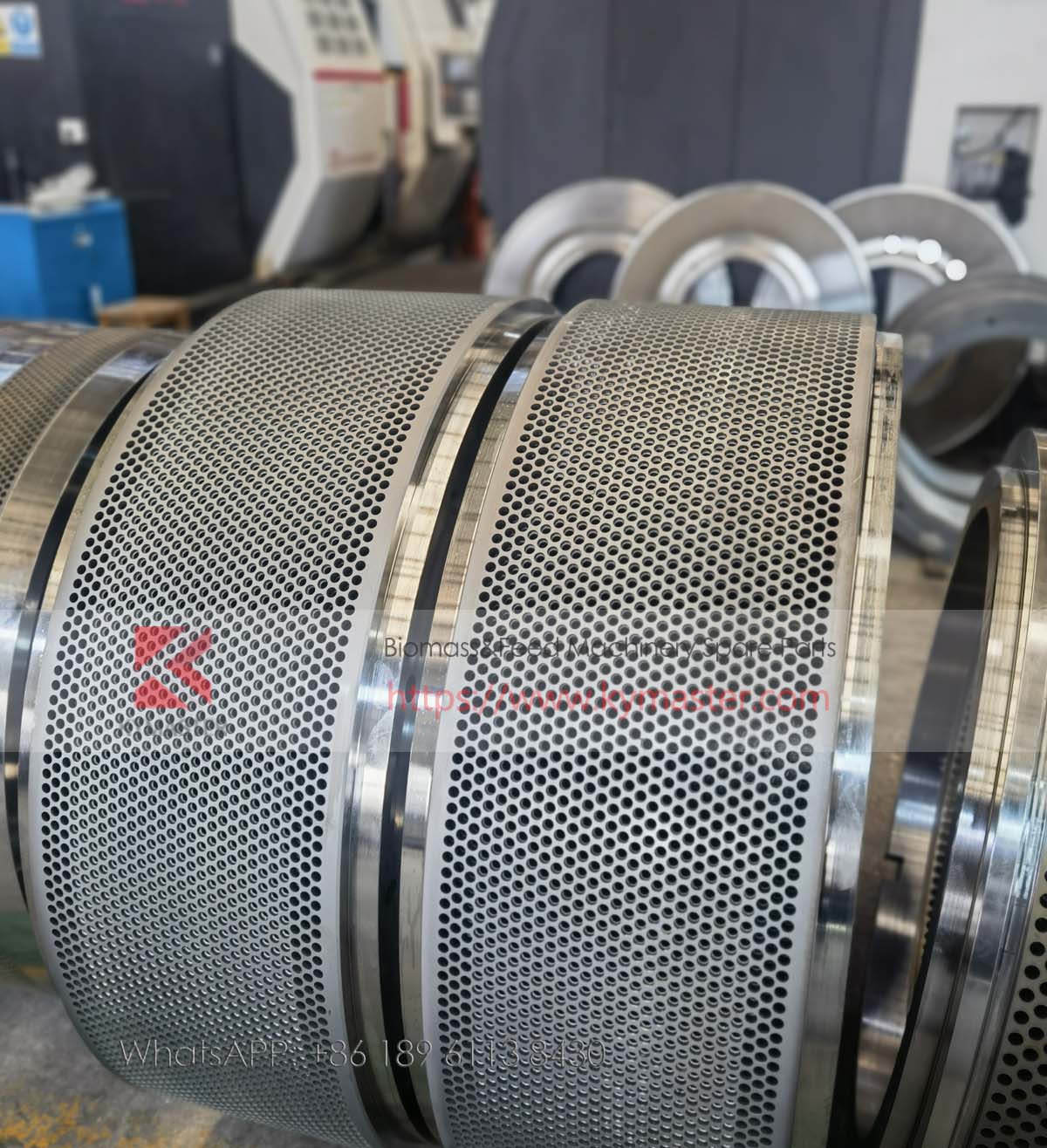

1.1 Full automatic CNC ring die drilling machine ensure once-shaped die hole with smooth finish, nice feed outlook, high capacity.
1.2 Vacuum heat treatment technology for a better working life of pellet mill ring dies.
1.3 Compression ratio and strength can be designed per customers' need

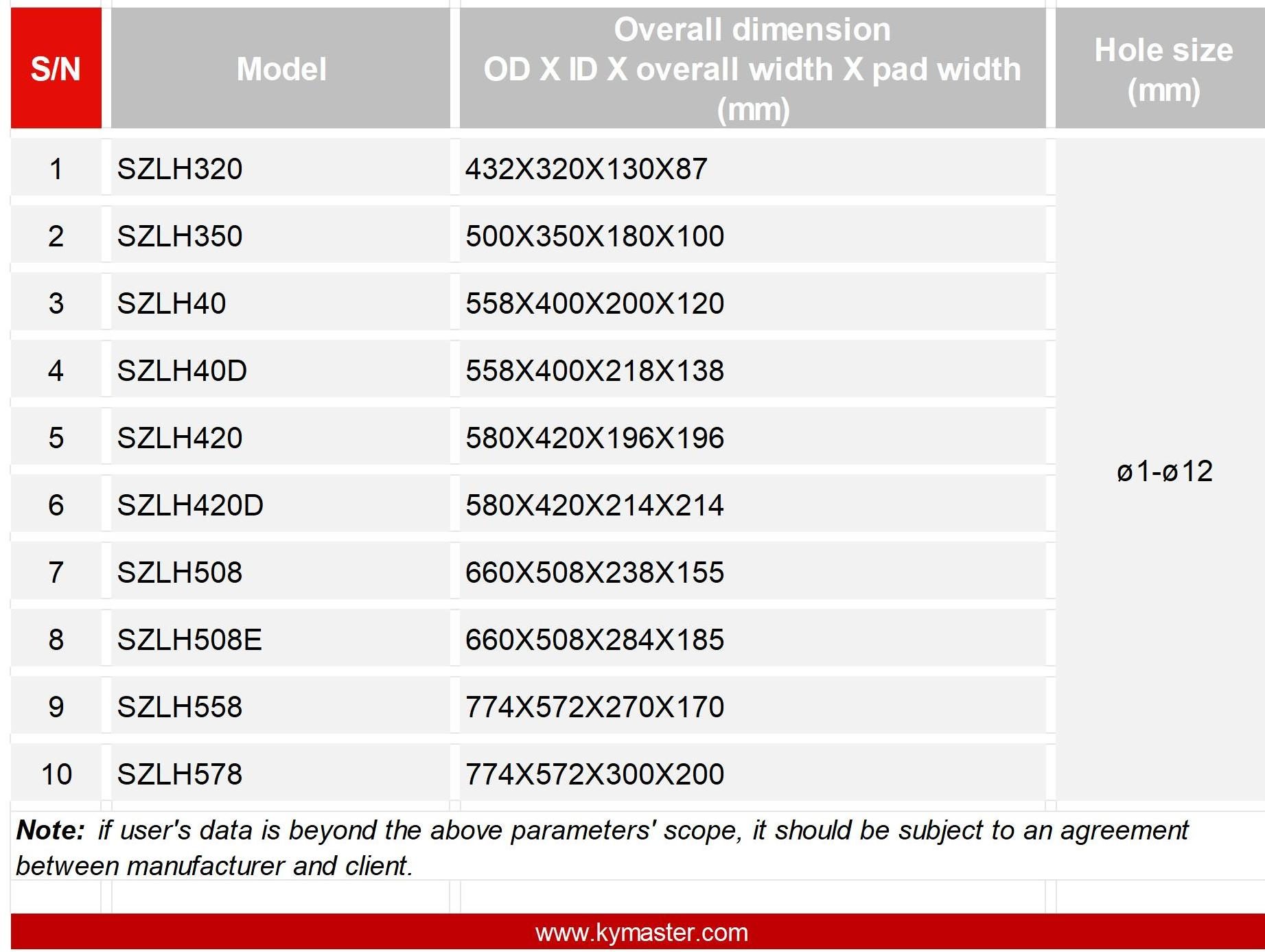

2. Zhengchang ring die's technical parameters

Superior Wear Resistance, Smoother Operation – Upgrade to Our Ring Dies Today!
